Open Amplifier

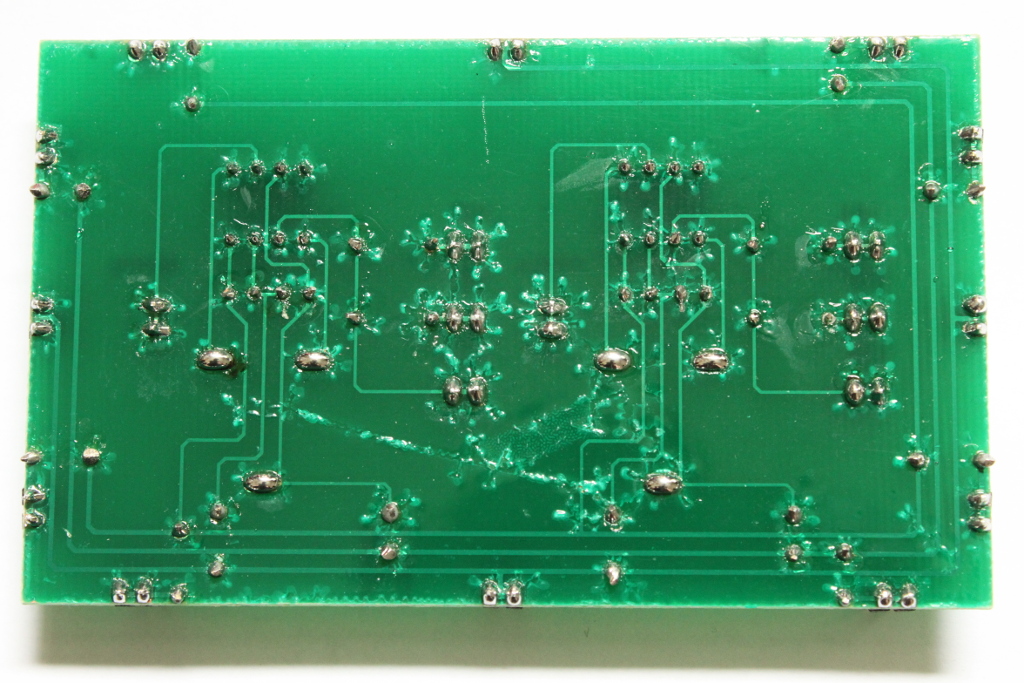

Analog Computer Amplifier 1 Analog Computer Amplifier 2

Schematic and PCB

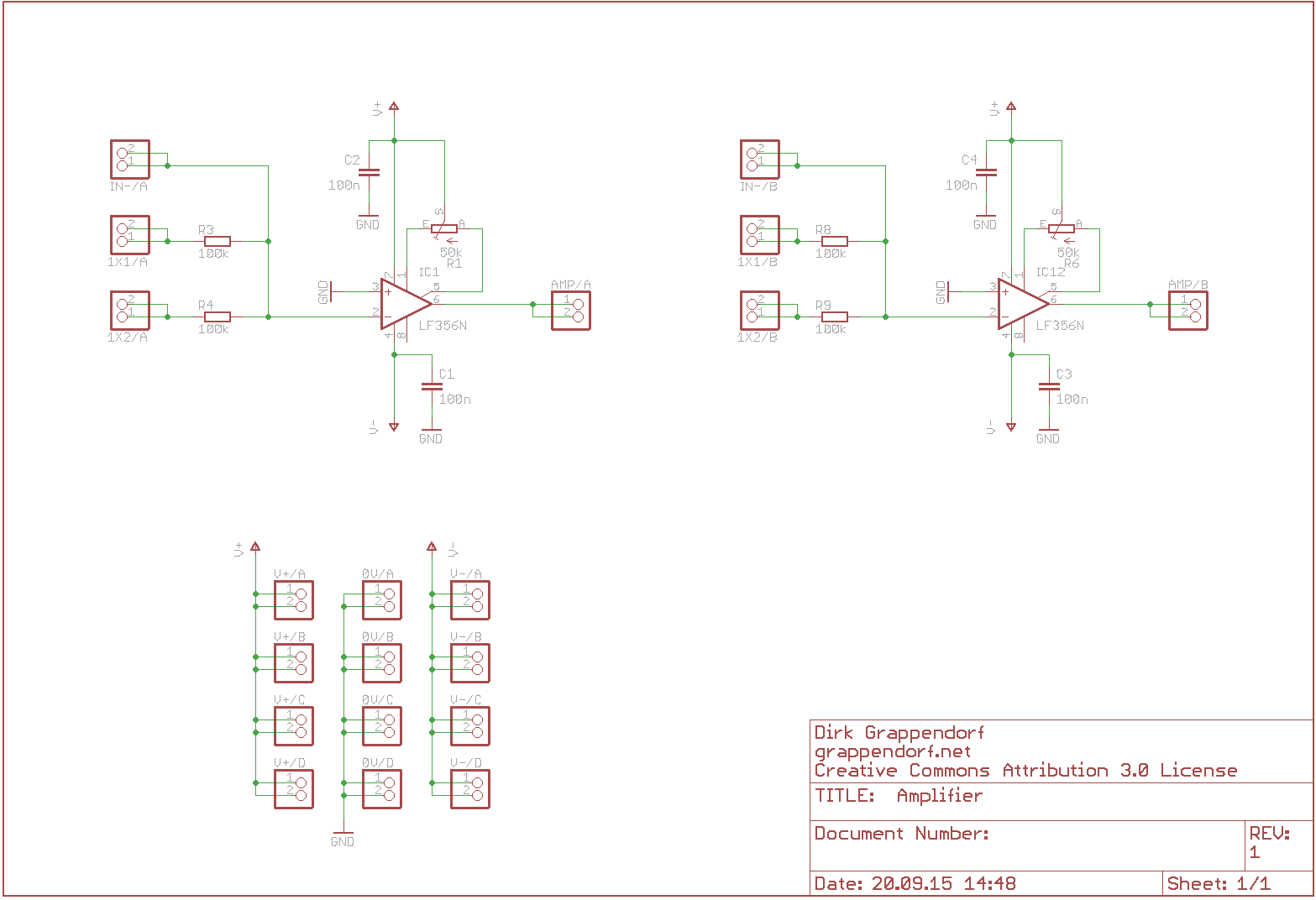

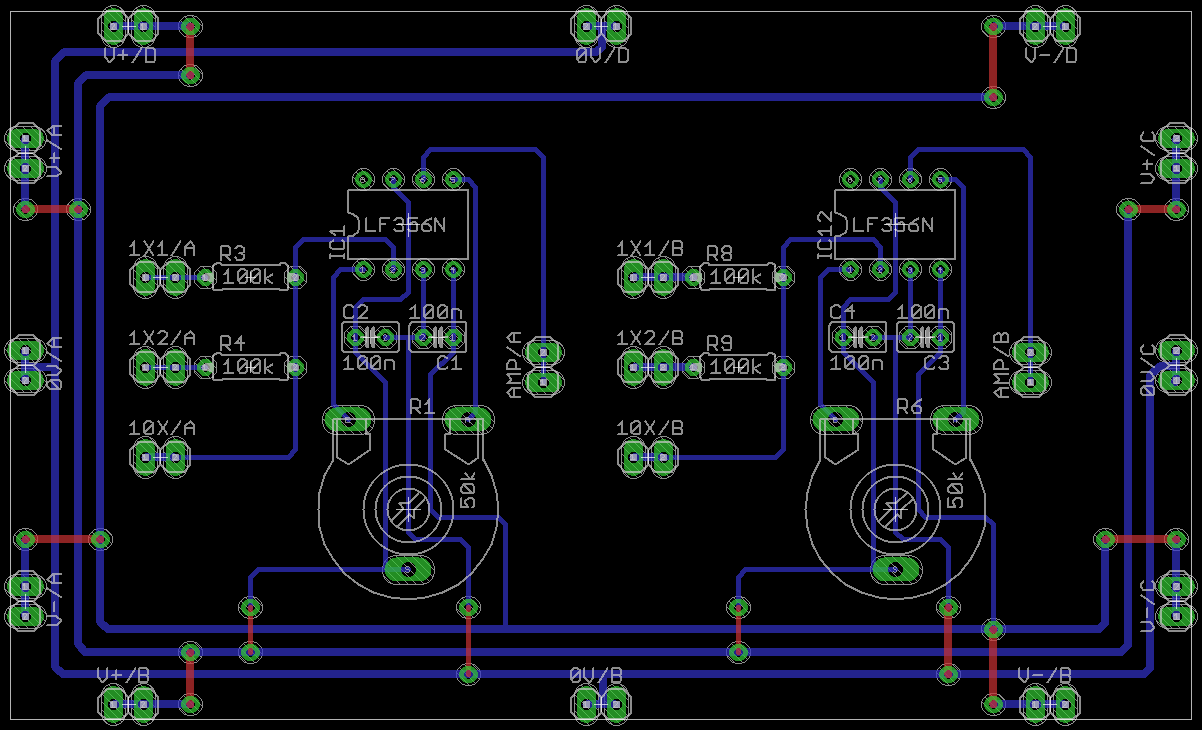

Analog Computer Amplifier Schematic Analog Computer Amplifier Board

This is the original circuit as described in Dr. Vogels Home Brew Analog Computer , except that a LF 356 is used instead of a LF 355.

Download the schematic PDF

Github octocat Project Files

The analog computer project files are hosted at GitHub:

https://github.com/grappendorf/analogcomputer

Subdirectory:  Amplifier
